OG303B R129 Car Child Safety Seat For 100-150CM Children

The OG303B R129 car child safety seat is designed for children with a height range of 100-150 cm, corresponding approximately to an age group of 3.5 to 12 years. Developed under the framework of UN Regulation No. 129 (R129), also known as i-Size, this product focuses on height-based classification, enhanced side impact protection, and extended rearward or forward-facing usability depending on the specific stage. Ningbo Yougaole Child Products Co., Ltd. integrates R129 requirements into the OG303B model to address the needs of growing children within the booster and high-back booster segment.

1. Concept and Regulatory Basis

The R129 regulation introduces a height-based selection method, moving away from weight-only classification under R44. The core concept behind the OG303B is to provide a restraint system that matches the child's height, shoulder width, and hip position for optimal seat belt routing. Key elements include:

• i-Size booster seat compatibility for 100-150 cm children.
• Mandatory side impact protection test requirements.
• Vehicle compatibility via i-Size seating positions or specific vehicle list approval.
• Clear labeling indicating the applicable height range and approval category.

2. Product Type and Installation Category

The OG303B belongs to the high-back booster seat category within the R129 framework for the 100-150 cm height band. Installation typically uses the vehicle's 3-point seat belt to secure both the child and the seat. Some R129 booster designs also integrate ISOFIX connectors for additional stability when not occupied, although the primary restraint remains the vehicle belt for the child.

3. Key Technical Features and Safety Functions

For the 100-150 cm height stage, the OG303B addresses safety through several structural and functional elements:

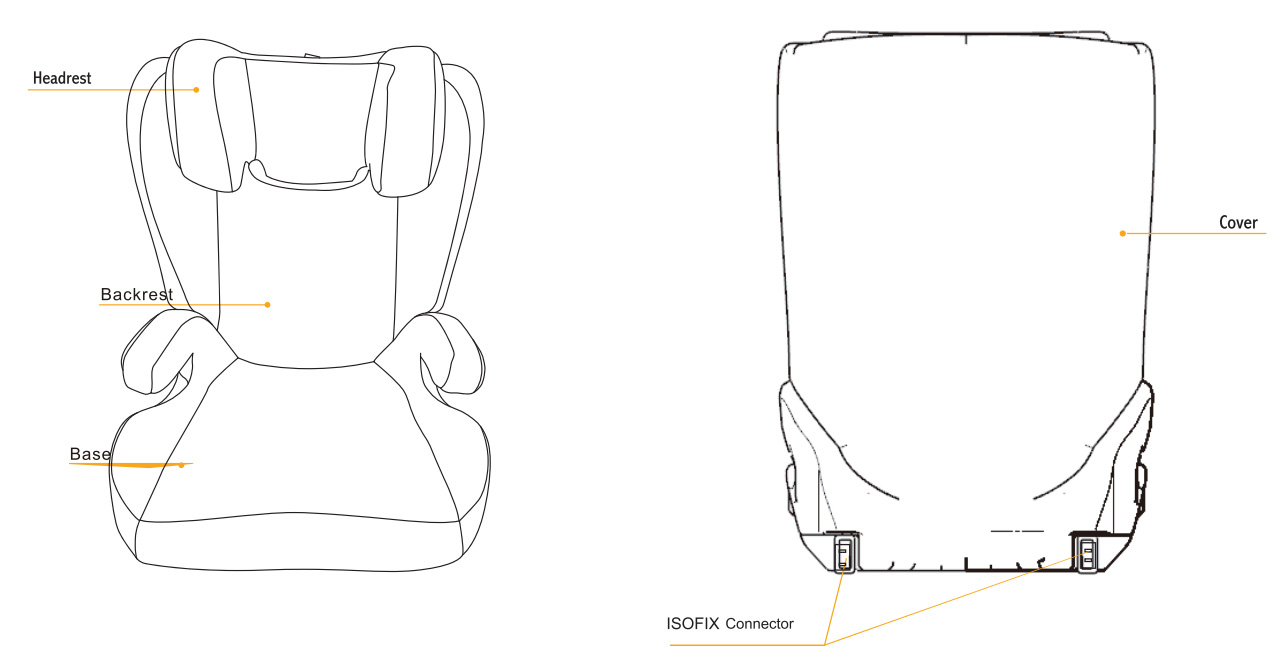

• Adjustable headrest with side wings to guide the diagonal belt and protect the head and neck.
• Belt routing guides positioned at the shoulder and lap to maintain correct belt geometry across the pelvis and chest.
• Energy-absorbing shell materials designed to manage impact forces during side and frontal collisions.
• Ventilated fabric covers for temperature regulation during extended travel.
• Width-adjustable backrest in some configurations to accommodate different shoulder widths within the 100-150 cm range.

4. Application and Vehicle Compatibility

The OG303B R129 seat is intended for use in vehicles equipped with i-Size approved seating positions, which are increasingly common in passenger cars produced after 2013. Users should verify the vehicle's compatibility list or the i-Size marking on the vehicle seat before installation. The seat is not designed for use on rear-facing vehicle seats, side-facing seats, or seats equipped only with a lap belt unless explicitly approved by the manufacturer.

5. Comparison: R129 vs R44 for 100-150 cm Group

6. Manufacturing and Quality Assurance at Ningbo Yougaole

Ningbo Yougaole Child Products Co., Ltd. designs and exports the OG303B under the ECE R129 approval and relevant 3C certification for applicable markets. The R&D team applies independent product development, and the seat incorporates patented structural features. Production follows internal quality control protocols aligned with regulatory testing requirements. Each unit is manufactured to meet the dimensional and material specifications required for the 100-150 cm height range.

7. Frequently Asked Questions (FAQ)

What age does the OG303B cover?

The seat is intended for children whose standing height is between 100 cm and 150 cm. This typically corresponds to ages 3.5 to 12 years, but height remains the primary selection criterion under R129.

Can the OG303B be used without ISOFIX?

Yes. The child is restrained using the vehicle's 3-point seat belt. ISOFIX connectors, when present, serve as an additional anchoring point but are not a substitute for the vehicle belt in this height stage.

Is side impact protection included in the R129 approval for this seat?

Yes. R129 approval requires a side impact dynamic test, and the OG303B is designed to meet that requirement within its certified configuration.

How should users confirm vehicle compatibility?

Users should check the vehicle owner's manual for i-Size seating position markings or consult the vehicle compatibility list provided with the seat documentation.

8. Conclusion

The OG303B R129 child car safety seat for 100-150 cm children represents a height-based booster solution aligned with current European regulatory standards. Its design addresses side impact performance, belt routing accuracy, and adjustable ergonomics for the upper height stage. Ningbo Yougaole Child Products Co., Ltd. produces this model under ECE R129 and 3C certification frameworks, serving export markets with a focus on standardized safety testing and independent product development.
