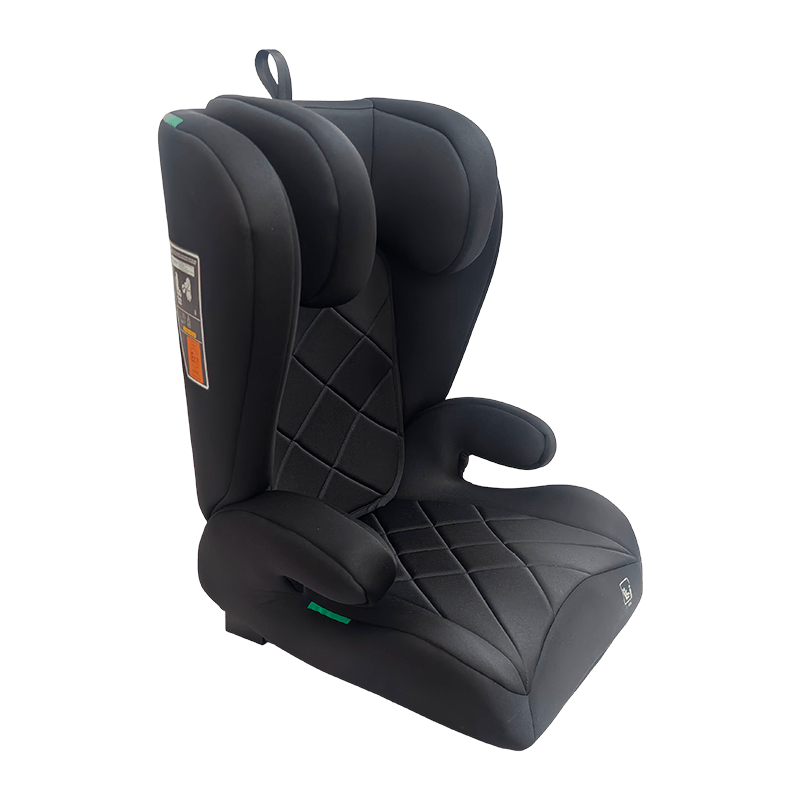

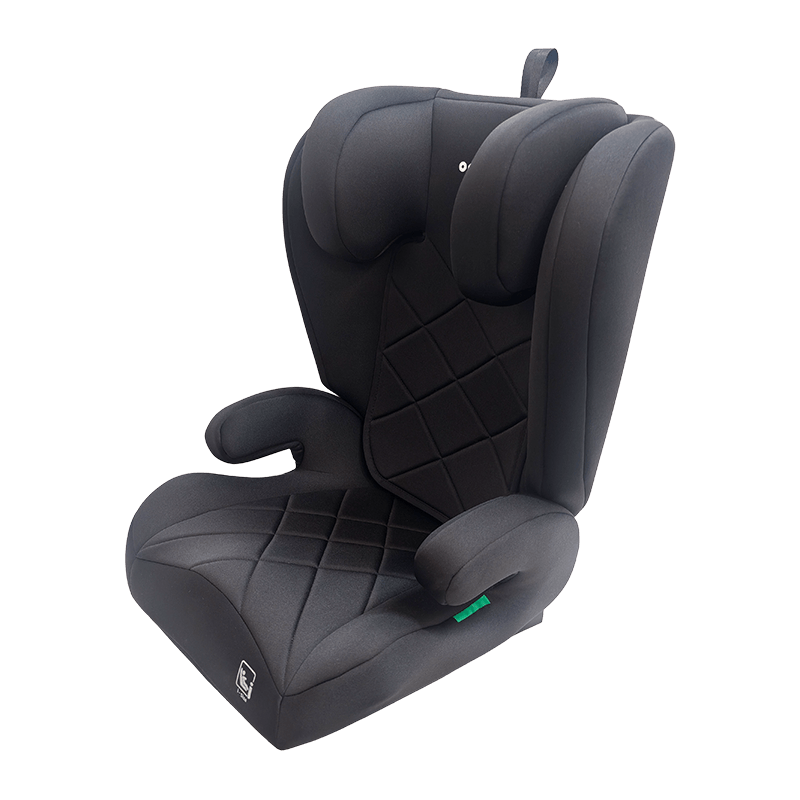

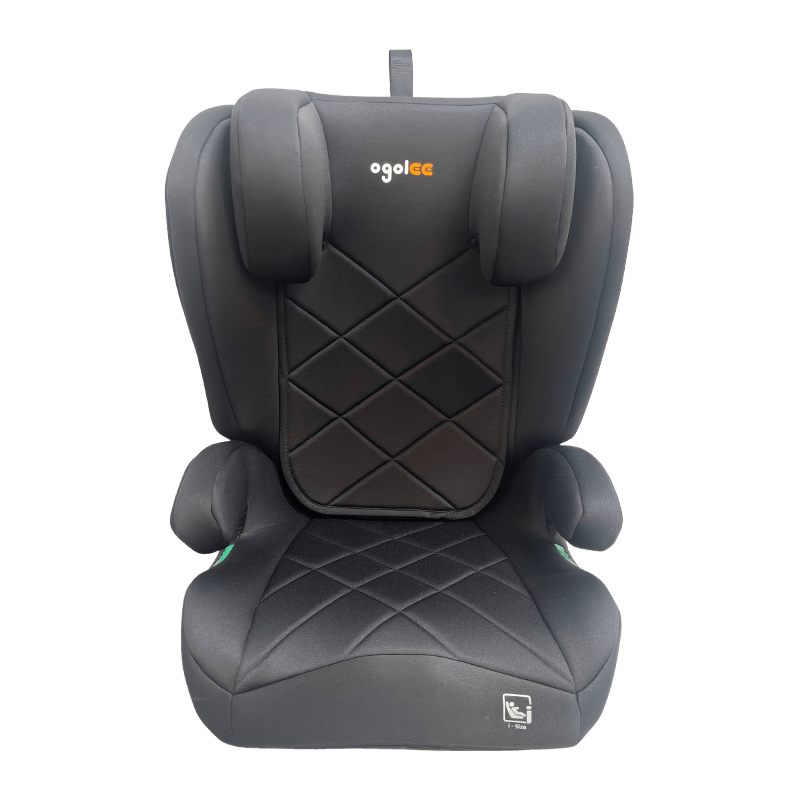

OG303B R129 Baby Car Seat for 100-150cm with Embossing

The OG303B R129 Baby Car Seat is a high-back booster seat designed for children with a height range of 100 cm to 150 cm. It is developed under the framework of UN Regulation No. 129 (R129), also known as i-Size, which emphasizes enhanced side-impact protection, mandatory rearward-facing travel for younger children, and classification based on child height rather than weight. The product incorporates an embossing pattern on the seat cover surface, which is a manufacturing technique that creates raised or recessed designs for improved material texture, visual distinction, and tactile grip.

Ningbo Yougaole Child Products Co., Ltd. produces the OG303B as part of a broader series of child restraint systems that comply with ECE R129 and CCC certification requirements. The company designs, develops, and exports baby car seats covering the 0–12 years age range, with the OG303B positioned for the Group III / high-back booster segment under the R129 classification.

Key Technical Characteristics

• Height-based installation: The seat is intended for users from 100 cm to 150 cm, aligning with R129 Phase 2 and Phase 3 height bands.
• Embossing detail: Embossed surfaces are applied to select fabric or foam areas. The process creates a permanent raised pattern that does not rely on printing or adhesive layers.
• Belt-routing design: The booster configuration guides the vehicle's three-point seat belt across the child's pelvis and shoulder.
• Side-impact structure: Integrated side wings provide containment and energy distribution in lateral collision scenarios.

Embossing in Child Car Seat Manufacturing

Embossing in the context of car seat covers and trim refers to a heat-press or mold-press process that deforms the top layer of material to create a three-dimensional pattern. This is not an applied coating or a printed graphic. Common methods include flat-bed embossing and roller embossing, depending on the material type and production volume.

For the OG303B R129, the embossing feature serves several functional and aesthetic purposes:

R129 Height-Based Classification Compared with ECE R44

The R129 regulation replaced the ECE R44 weight-based system in stages. The table below compares the two frameworks for the 100–150 cm height range addressed by the OG303B.

Application Scenarios

Vehicle Fitment

The OG303B is intended for use in forward-facing orientation with the vehicle's three-point seat belt. It is suitable for passenger vehicles where the rear seat belt anchorage points are positioned according to the vehicle manufacturer's specifications. No ISOFIX anchor points are required for the 100–150 cm booster configuration unless the specific model variant includes an ISOFIX attachment option.

Target Age Range

Based on height percentiles, children between 100 cm and 150 cm generally correspond to an approximate age range of 3.5 to 12 years. The seat transitions the child from a harness-based restraint to a booster configuration where the vehicle belt provides primary restraint.

Export Market Considerations

Ningbo Yougaole Child Products Co., Ltd. exports the OG303B to markets where R129 certification is accepted or required. Key regions include the European Union, United Kingdom, and certain Asia-Pacific markets that recognize ECE regulations. The product also holds CCC certification for the domestic Chinese market, where the 3C mark is a mandatory requirement for child restraint systems.

Manufacturing and Quality Control

The OG303B is produced with an injection-molded polypropylene (PP) shell and an energy-absorbing foam layer, typically expanded polystyrene (EPS) or expanded polypropylene (EPP). The embossed cover fabric is cut and sewn after the embossing process to ensure pattern alignment across visible panels.

Quality control procedures include:

• Dimensional verification of the belt-routing path against R129 fixture specifications.
• Pull-testing of cover attachment points to prevent detachment during normal use.
• Side-impact dynamic testing on an acceleration sled according to the R129 test protocol.
• Embossing depth measurement using a digital profile gauge to maintain consistent pattern height across production batches.

Frequently Asked Questions

What is the minimum height for using the OG303B?

The minimum standing height is 100 cm. Children below this height should remain in a harness-based restraint system that complies with the appropriate R129 height band.

Does the embossing affect cleaning or maintenance?

The embossed pattern is integrated into the cover material itself. Cleaning methods depend on the cover fabric type, but the embossed area does not require different handling compared to non-embossed sections of the same material.

Can the OG303B be installed on a front passenger seat?

Installation on a front passenger seat is permitted only if the vehicle manufacturer allows child restraint systems in that position and the front passenger airbag is deactivated according to the vehicle manual. The primary installation position is the rear seat.

Is the embossing purely decorative?

No. While the embossing pattern provides a visual design feature, it also contributes to surface friction and texture stability in areas where the child's body contacts the seat during normal driving conditions.

Company Positioning

Ningbo Yougaole Child Products Co., Ltd. designs and manufactures the OG303B as part of a comprehensive child restraint portfolio that addresses the 0–12 years age range. The company's R&D team maintains compliance with ECE R129, CCC, and other applicable certification frameworks. Products are developed with an emphasis on safety testing, durability, and production consistency. The embossing feature on the OG303B reflects the company's integration of surface-treatment processes into standard seat cover manufacturing without adding secondary materials or coatings.
